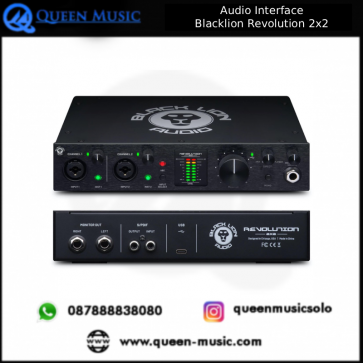

Blacklion Revolution 2x2

Toko Musik lengkap di Solo
www•queen-music•com
CALL : (0271)-643315
WA/ SMS : 087888838080

Black Lion Audio have been revered as the “king of audio mods” for years, and have modded countless recording interfaces over the years. But since the very beginning, we’ve been asked when we would create our own interface. So, we planned, engineered, and worked — all in secret, for years.

It took an impressive amount of design to revolutionize bus-powered, studio-grade interfaces. Now we are responding with Revolution 2x2: the ultimate in portable recording interfaces. Revolution isn’t another run-of-the-mill interface from big brother — it’s the interface the world has always asked for.

Mic Input

• Input Impedance3KΩ (balanced)

• Gain Range55dB

• Frequency Response20Hz – 20KHz +/- 0.25dB

• THD + N.00098% (@12dB Gain)

• Dynamic Range116dB (A-Weighted)

• Crosstalk< 100dB

Line Input

• Input Impedance14KΩ (balanced)

• Maximum Input20dBu

• Gain Range55dB

• Frequency Response20Hz – 20KHz +/- 0.25dB

• THD + N.0022% (Min Gain)

• Dynamic Range126dB (A-Weighted)

• Crosstalk< 100dB

Line Outputs

• Output Impedance95Ω (balanced)

• Max Output Level12dBu

• Frequency Response20Hz – 20KHz +/- 0.25dB

• THD+N .002%(@ +10dBu)

• Dynamic Range106dB*

Instrument Input

• Input Impedance1MΩ (unbalanced)

• Gain Range55dB

• Frequency Response20Hz – 20KHz +/- 0.25dB

• THD + N.00114% (@ 0dBu)

• Dynamic Range103dB (A-Weighted)

• Crosstalk< 100dB

Headphone Outputs

• Output Impedance2.5Ω

• Maximum Signal Output9.3dBu

• Frequency Response20Hz – 20KHz +/- 0.5dB
